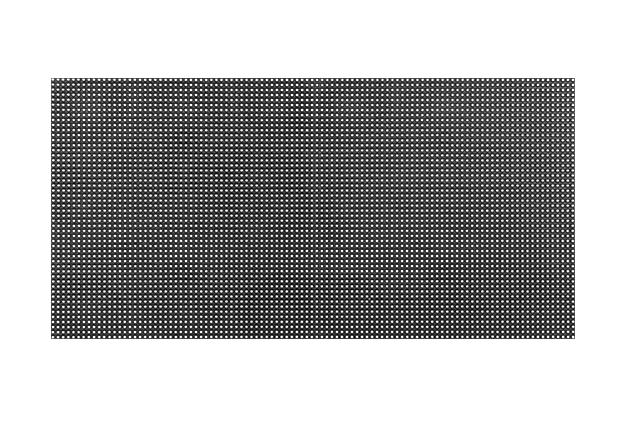

P3.076mm Outdoor LED Display Module 320mmx160mm
P3.076mm Outdoor LED Display Module 320mmx160mm
The outdoor P3.076 LED display module features a high-performance LED panel for a wide range of uses. Measuring 320 mm x 160 mm (12.6 in x 6.3 in), the module is built to withstand harsh outdoor conditions with an IP65-rated weatherproof and dustproof design. Uninterrupted performance is guaranteed even when exposed to heavy rain, strong winds, and dust.
Commonly installed in retail stores, churches, theaters, bus stations, stadiums, public highways, and hotels, the P3.076 mm LED display module is an ideal solution for outdoor signage and public information displays.
Product Description
P3.076 Outdoor LED Display Features
- Waterproof and dustproof: P3.076 Outdoor LED Display adopts specialized waterproof and dustproof technology to ensure stable operation in many harsh outdoor conditions, such as rain, snow or hot and humid weather.
- High Brightness: In order to ensure that the content is still visible in the high light environment outdoors, P3.076 outdoor LED display has high brightness settings.
- High Definition: With high pixel density, P3.076 outdoor LED display can provide clear image and text display, which is ideal for occasions that require high-definition display, such as advertising and video broadcasting.
- Wide Viewing Angle: The P3.076 outdoor LED display is designed to support remote viewing with a wide viewing angle, ensuring clear content can be seen from different viewing points.
P3.076 Outdoor LED Display Specifications
| Module size | 320mm*160mm*19mm |
| Pixel pitch | 3.076mm |
| Pixel density | 105625dots/m2 |
| LED lamp | SMD1415 |
| Resolution | 104 dot(W)*52 dot(H) |
| Module area | 0.0512㎡ |
| Weight | 0.46kg±0.01 kg |
| Viewing distance | ≥3m |
| Viewing angle | 140 (H)/130 (V) |
| Pixel configuration | 1R1G1B |
| Brightness range | 3500-4000cd/㎡ |
| Working voltage | DC 4.5-5V |
| max power consumption | ≤36.5W |
| Driver IC | Constant current driver |
| Drive mode | 1/13 S |
| Refresh rate | ≥1920Hz/3840Hz |
| Gray scale | 13-14bit |
| Control mode | Synchronize |
| Maximum power | ≤ 712.9w/m² |
| Power distribution | 1075.2w/m² |
| Operating environment | Outdoor |
| Working temperature | -20℃~50℃ |
| Working humidity | 10% – 90%RH |
| MTBF | ≥10000 hours |
| Work life | ≥100000 hours |
| Blind spot rate | ≤1/10000 |
| Attenuation rate | ≤15% |
| Beveled Bottom Shell | Customizable bevel kit |
Have Queries?
If you have any questions or need further assistance, you can always email us, or simply use our contact information so that we can help you promptly.

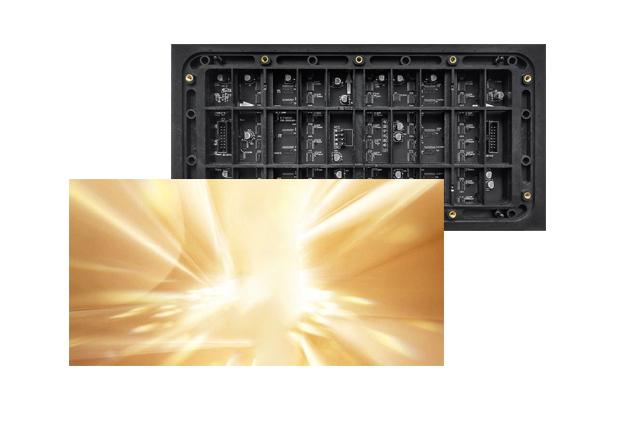

Multi-functional, High-performance LED Display Panel
The outdoor P3.076 LED display module is a multi-functional, high-performance outdoor LED display panel capable of delivering excellent visual clarity, brightness, and durability in various challenging outdoor environments.
With a module size of 320 mm x 160 mm and a modular design, it can be seamlessly integrated into various display systems to easily grab attention and effectively convey advertising content.
Advanced SMD Technology

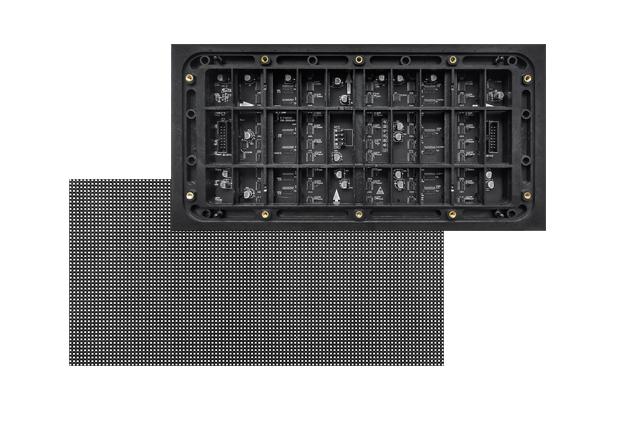

The outdoor P3.076 LED display module employs advanced SMD (Surface-Mount Device) technology, equipped with high-brightness LEDs, energy-efficient driver ICs, and precisely designed rubber sealing components to ensure efficient performance and stability.

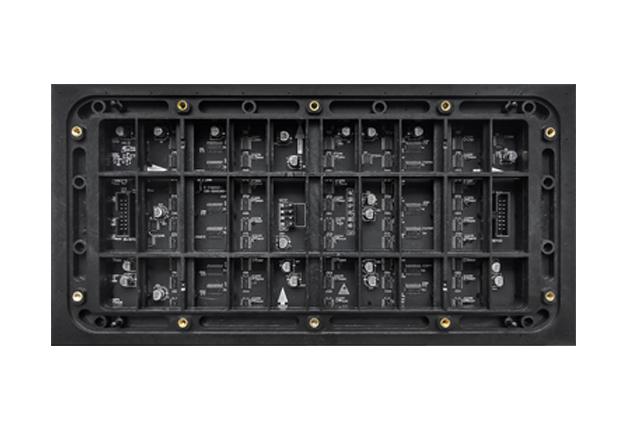

The standardized screw hole design enhances compatibility and simplifies the installation and maintenance process, making the P3.076 an ideal choice for outdoor displays that combine functionality and aesthetics.
Accessories
This product includes a standard 4-pin power cord, used for connecting the module to the power source.
The package includes waterproof rubber seals to maximize and optimize the level of protection.
We will provide a 16-Pin LED Display Flat Data Cable (signal cable) free of charge, based on industry standards, to help save costs.
The screws are specially designed to firmly hold the module and its components in place, ensuring stability and reliability.
Multifunctional Application

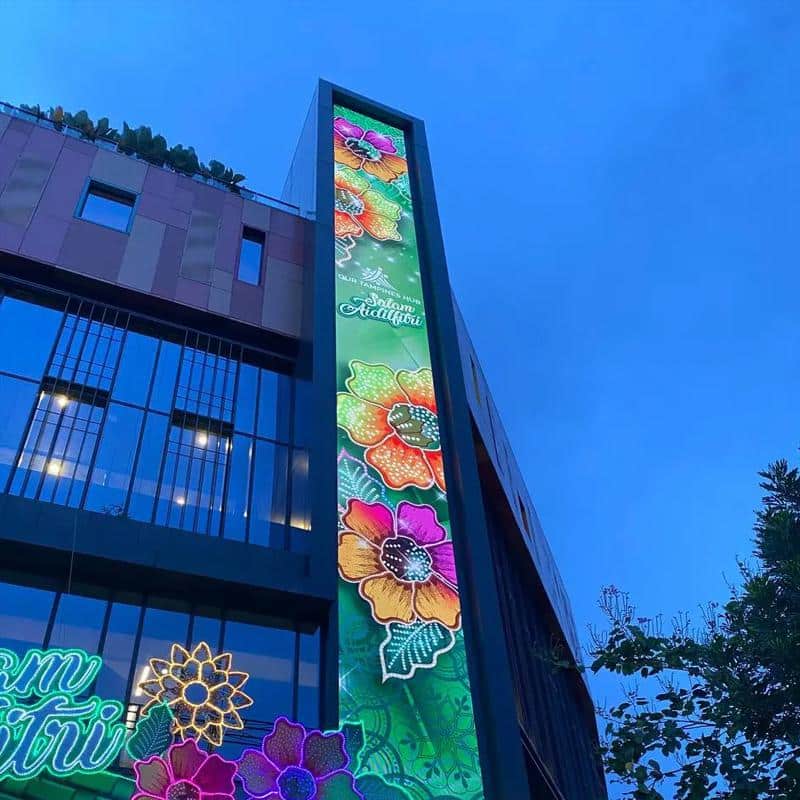

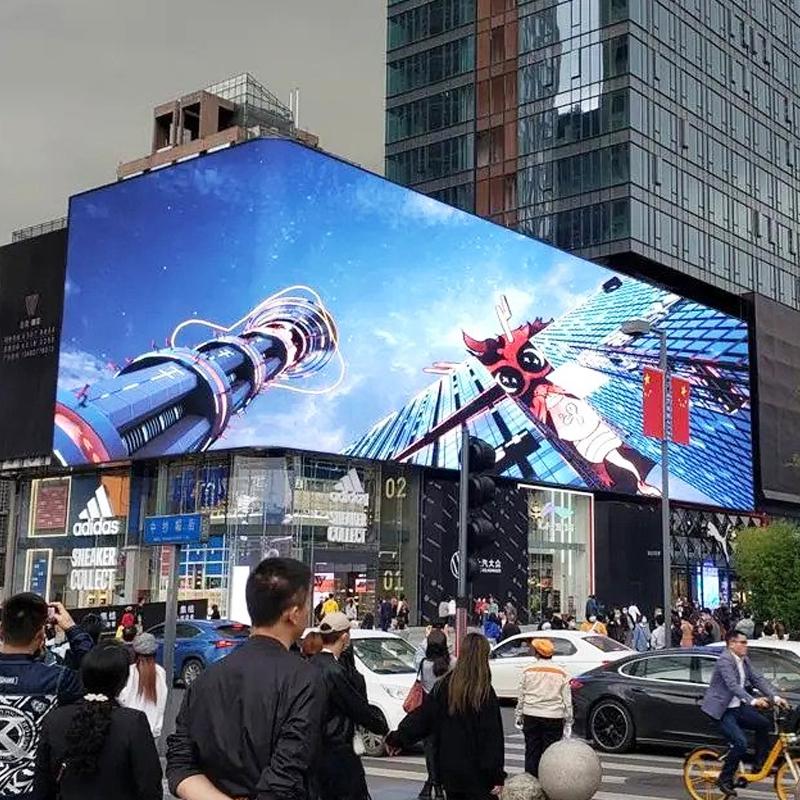

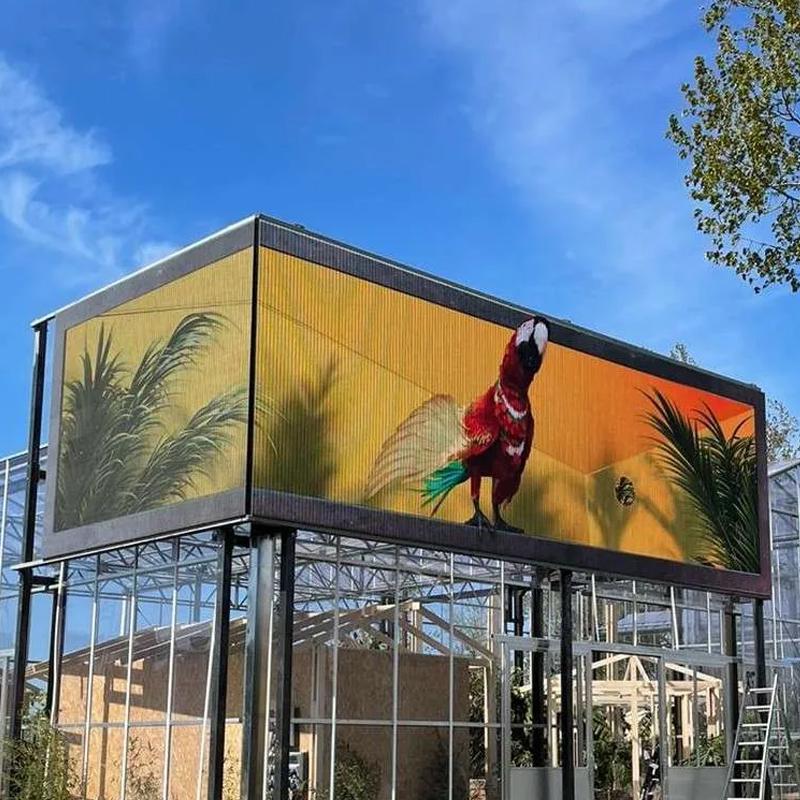

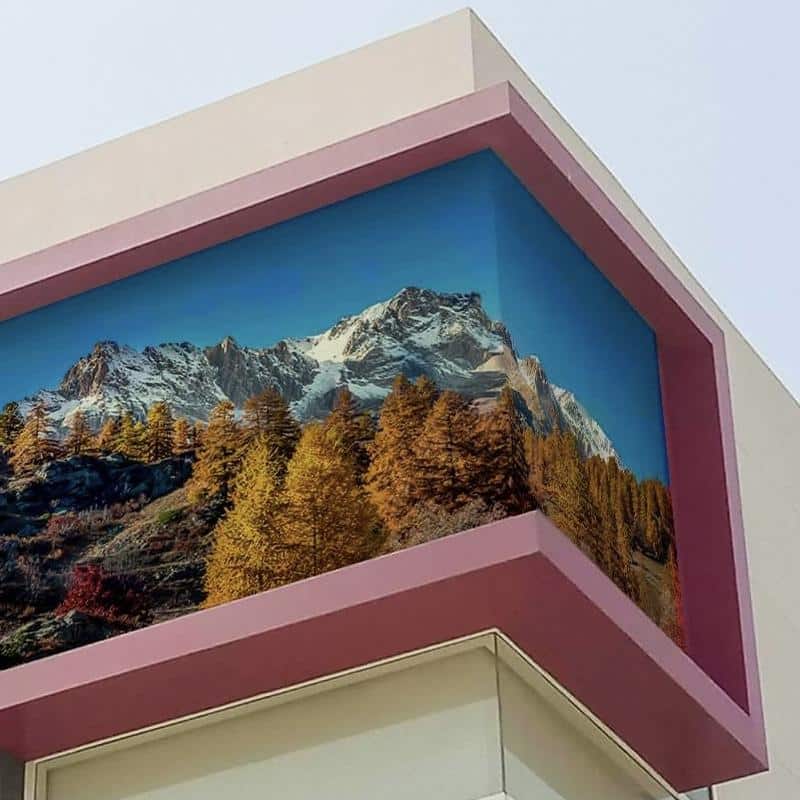

P3.076 Outdoor LED display is favored for its wide range of applications, which can be easily adapted to outdoor billboards, business meeting rooms, sports event venues, and many other environments that require large screen displays. It plays an indispensable role in information display, interactive experience and recreational activities.
The Difference Between P3.076 outdoor LED display and P3.076 Indoor LED Display
LED displays have revolutionized the way we experience digital content, offering unparalleled clarity and vibrancy. Among the myriad of options available, the P3.076 outdoor LED display and the P3.076 indoor LED display stand out for their distinct characteristics and applications. Understanding the differences between these two types of displays can help you make an informed decision based on your specific needs.
Pixel Pitch and Resolution
The pixel pitch, denoted by “P,” refers to the distance between the centers of two adjacent pixels. It is a critical factor in determining the resolution and clarity of an LED display.
P3.076 Outdoor LED Display
With a pixel pitch of 3.076mm, this display offers high resolution and is suitable for outdoor applications where visibility needs to be maintained even from a distance. The tighter pixel pitch ensures sharper images and better detail, making it ideal for large outdoor screens at events, stadiums, and advertising billboards.
P3.076 Indoor LED Display
The P3.076 Indoor LED Display does not have such a high resolution. However, it is sufficient for indoor environments where the viewing distance is usually short. Indoor LED displays are often used in conference rooms, retail stores, and entertainment venues where the audience is close to the screen.
Brightness and Visibility
Brightness is another crucial factor, especially when considering the environment in which the LED display will be used.
P3.076 Outdoor LED Display: Outdoor LED displays require higher brightness levels to combat the ambient light and ensure visibility under direct sunlight. The P3.076 typically has a brightness level of around 5000-7000 nits, making it highly visible even in bright outdoor conditions.
P3.076 Indoor LED Display: Indoor environments do not require the same level of brightness as outdoor settings. The P3.076 usually has a brightness level of around 1000-2000 nits, which is sufficient for indoor lighting conditions. This lower brightness also helps in reducing eye strain for viewers.
Durability and Weather Resistance
Durability and weather resistance are paramount for outdoor LED displays, given the exposure to various weather elements.
P3.076 Outdoor LED Display: These displays are built to withstand harsh weather conditions, including rain, snow, and extreme temperatures. They are typically encased in robust enclosures with waterproof and dustproof ratings, ensuring longevity and reliability.
P3.076 Indoor LED Display: Indoor LED displays do not require the same level of weather resistance. They are designed for controlled environments and are usually housed in more lightweight and aesthetically pleasing frames.
Installation and Maintenance
The installation and maintenance considerations also differ between outdoor and indoor LED displays.
P3.076 Outdoor LED Display: Outdoor installations often require more extensive structural support and may involve additional considerations such as wind load and accessibility for maintenance. Regular cleaning and inspection are necessary to ensure the display remains in optimal condition.
P3.076 Indoor LED Display: Indoor installations are generally simpler and require less structural support. Maintenance is also more straightforward, with easy access for routine checks and repairs.
Cost Considerations
The cost of the LED display is an important factor to consider.
P3.076 Outdoor LED Display: Outdoor LED displays typically have a higher upfront cost due to the advanced technology, weatherproofing, and additional structural requirements. However, the investment is justified by the extended lifespan and durability of the display.
P3.076 Indoor LED Display: Indoor LED displays are generally more affordable, making them an excellent choice for businesses and venues with budget constraints. The lower maintenance and installation costs also contribute to the overall affordability.
Conclusion
The P3.076 outdoor LED display and the P3.076 indoor LED display each have their unique advantages and are suited for different environments. The P3.076 offers higher resolution and brightness, making it ideal for outdoor applications where visibility and durability are paramount.
On the other hand, the P3.076 is more suitable for indoor settings, providing excellent display quality at a more affordable price. By considering these factors, you can select the LED display that best meets your specific needs and enhances your visual experience.
