P4.81 Outdoor Rental LED Display 500×1000 Cabinet
P4.81 Outdoor Rental LED Display 500×1000 Cabinet
P4.81 outdoor rental LED display is a waterproof LED display designed for outdoor use. It mainly consists of 500mm*500mm and 500mm*1000mm cabinets to flexibly respond to various needs
This P4.81 outdoor rental cabinet offers a variety of mounting options, such as hanging and wall mounting, allowing you to easily respond to the needs of different occasions.P4.81 LED displays are used in exhibitions, press conferences, weddings, concerts, and more!
- Intelligent Heat Dissipation: Ensures continuous use without compromising performance.
- Lightweight and Durable: Made of aluminum alloy to ensure lightweight and sturdiness.
- Wide Viewing Angle: Significantly expands the viewing area, allowing more viewers to share in the moment.
Product Description
Outdoor Rental Series Has Uniform Kit Size & Hole Position& Cabinet Hole Position, Which Can Be Used Universally
- High Performance: Dedicated Driver Chip and Input Buffer Chip for LED High-Density Full Color Screen,Bright Colors, More Delicate and Smooth Video Images
- Good Effect: The Driver Ic Drives Red, Green, And Blue Three-Color LED Through Oe Signals, Which Can Form 4,398 Billion Color Transformations
- Ultra-Wide Field: SMD Lamps, Multi-directional Viewing Effect Is the Same from Multiple Direction
- Display Effect: High Contrast, Enhance the Contrast Between Light and Dark, Enhance the Details of the Picture, And Restore the True Color
- Low Power Consumption: Tt Adopts Constant Current Mode to Activate LED, With Uniform Luminescence and Low Power Consumption Performance
- Good Portability: The Module Is Light in Weight and Easy to Install and Disassemble;
- Strong Reliability: It Adopts High Protection Lamp Beads, Glue Filling on the Front, And Three-Proof Paint Spraying on the Back, Waterproof and Moisture-Proof, Stable and Reliable

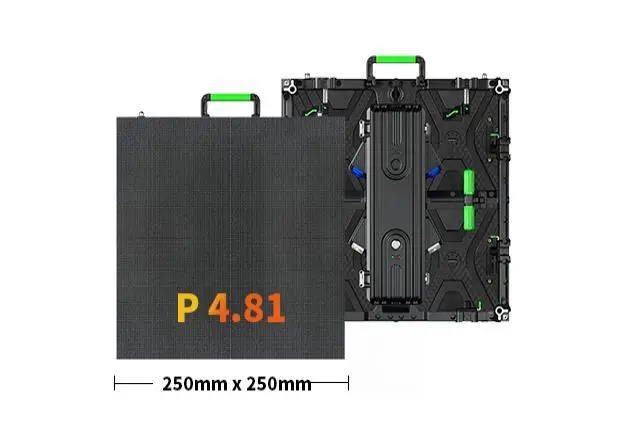

4.807mm Pixel Pitch , With52*52 Pixels Totally, Each Pixel Is Composed of 1r1g1b
P4.81 Outdoor Rental LED Display Technical Parameters
| Module size | 250mm*250mm*17mm |
| Pixel pitch | 4.807mm |
| Pixel density | 43264dots/m2 |
| LED lamp | SMD1921 |
| Resolution | 52 dot(W)*52 dot(H) |
| Module area | 0.0625㎡ |
| Weight | 0.68kg±0.01 kg |
| Viewing distance | ≥5m |
| Viewing angle | 140 (H)/130 (V) |
| Pixel configuration | 1R1G1B |
| Brightness range | 3500-4000cd/㎡ |
| Working voltage | DC 4.5-5V |
| max power consumption | ≤45W |
| Driver IC | Constant current driver |
| Drive mode | 1/13 S |
| Refresh rate | ≥1920Hz/3840Hz |
| Gray scale | 13-14bit |
| Control mode | Synchronous control |
| Maximum power | ≤ 720w/m² |
| Power distribution | 1085.9w/m² |
| Operating environment | Outdoor |
| Working temperature | -20℃~50℃ |
| Working humidity | 10% – 90%RH |
| MTBF | ≥10000 hours |
| Work life | ≥100000 hours |
| Blind spot rate | ≤1/10000 |
| Attenuation rate | ≤15% |
Have Queries?
If you have any questions or need further assistance, you can always email us, or simply use our contact information so that we can help you promptly.

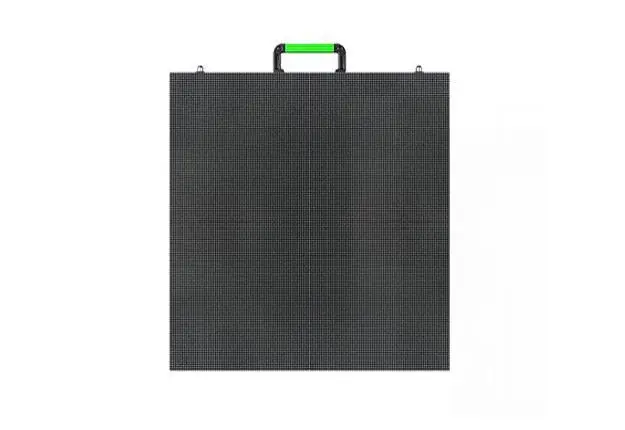

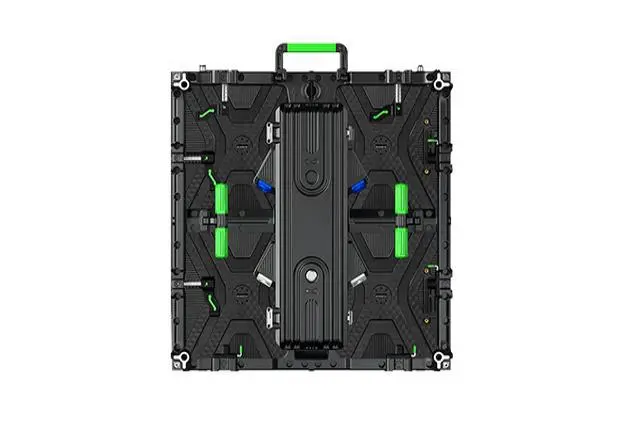

Standardized Design for Quick Installation and Removal
P4.81 outdoor rental LED display adopts standard cast aluminum cabinet to ensure quick installation and disassembly. When you combine four 500*500mm cabinets vertically and horizontally, it happens to form a square meter of perfect display surface. This not only simplifies the calculation process, but also makes assembly very easy and convenient – just connect the cables and light up the screen.
When disassembling, all that is required is to remove the cables connecting the cabinet, then remove the screws on the threaded holes holding the cabinet in place, and finally place the cabinet in an air box for transportation. Such simple steps undoubtedly provide greater efficiency and convenience for your event.

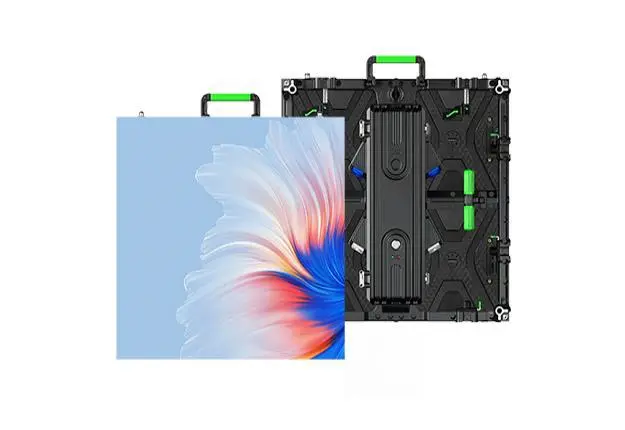

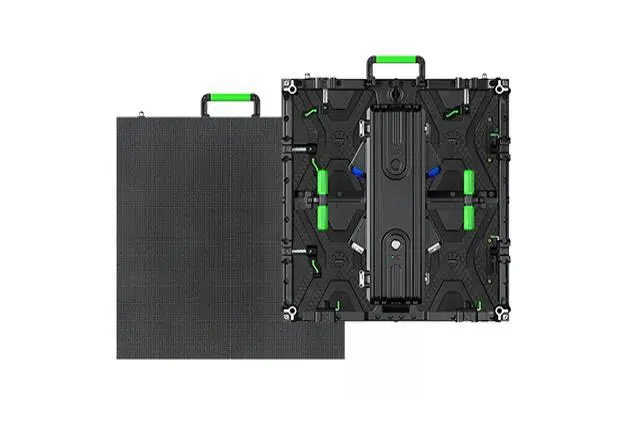

Highlights of P4.81 Outdoor Rental LED Display Screen
Streamlined Appearance, Fashionable and Beautiful, Enhance the Visual Grade for Every Event.
Clever Wiring Management, Keep Clear and Orderly, Make Your Venue Look More Professional.
Diverse Installation Methods, Easily Adapt to the Needs of Various Venues and Realize the Perfect Layout.
Lightweight Design, Convenient Handling and Transportation
Accessories
This product includes a standard 4-pin power cord, used for connecting the module to the power source.
The package includes waterproof rubber seals to maximize and optimize the level of protection.
We will provide a 16-Pin LED Display Flat Data Cable (signal cable) free of charge, based on industry standards, to help save costs.
The screws are specially designed to firmly hold the module and its components in place, ensuring stability and reliability.

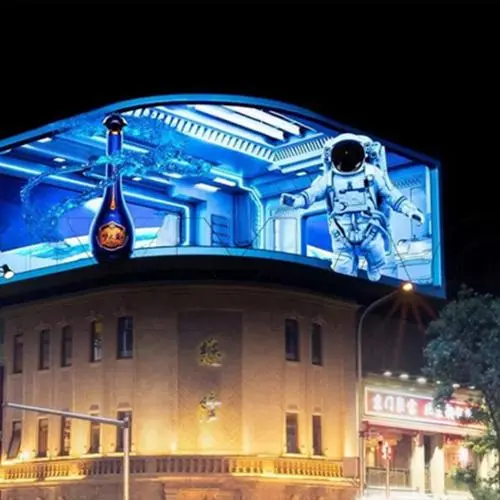

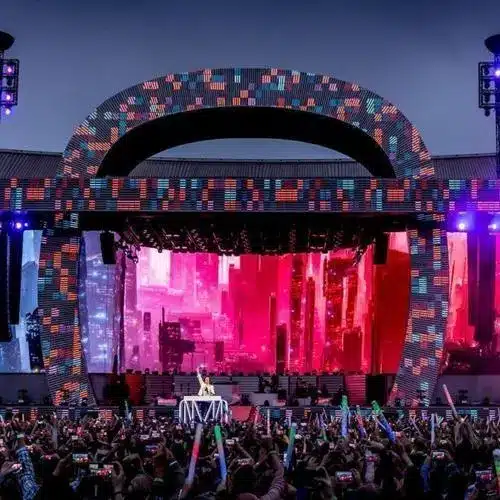

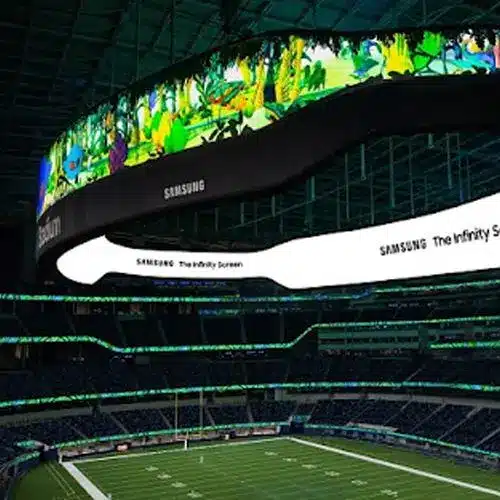

P4.81 Outdoor Rental LED Display Application
P4.81 outdoor rental LED display is suitable for a wide range of event scenes, including stage background, live broadcast, church ceremony, anniversary celebration, conference, exhibition, wedding, groundbreaking, opening, promotional activities, etc., bringing wonderful audio-visual experience to the audience. Its flexibility makes it an ideal choice for various outdoor occasions, able to meet the display needs of different customers.
1. What is P4.81 outdoor lease LED display?
P4.81 refers to the pixel spacing of the LED display 4.81 mm. This close pixel spacing allows the display to provide higher resolution and clearer images, especially for outdoor activities and large places, such as music festivals, sports events and advertising.
2. How to Install P4.81 Outdoor Rental LED Display?
The modular design of the P4.81 outdoor rental LED display makes the installation process very simple. Generally speaking, you only need to follow the installation guide provided by the manufacturer to splice and fix each module. For large displays, it is recommended to hire a professional team for installation to ensure safety and stability!
3. What Is the Service Life of P4.81 Outdoor Rental LED Display?
Under normal use and maintenance, the service life of P4.81 outdoor rental LED display can reach more than 100,000 hours. Regular inspection and maintenance, such as cleaning the surface of the screen, checking the connecting cables and power supply equipment, can effectively extend its service life.
4. What Is the Energy Consumption of This Kind of Display?
The energy consumption of P4.81 outdoor rental LED display is relatively low, usually between 200W and 800W per square meter. The exact energy consumption depends on the brightness setting of the display and the usage scenario. Choosing the right power supply scheme and energy-saving settings can further reduce energy consumption.
5. Do I Need Specialized Personnel for Operation and Maintenance?
Although installation and basic operation are relatively simple, to ensure the best display effect and safety, it is recommended that installation and daily maintenance be carried out by professionals. The professional team can quickly respond to unexpected problems and ensure the smooth running of the event.
6. How to rent P4.81 outdoor LED display?
Consultation and quotation: contact the LED display rental company, provide event details and requirements, get a quotation.
Signing Contract: Agree on the rental terms and fees and sign the contract.
Transportation and Installation: The rental company is responsible for the transportation and installation of the display.
Technical Support: Provide technical support during the event to ensure the normal operation of the display.
Disassembly and recycling: After the event, the rental company is responsible for disassembling and recycling the display.
